Getting Started

This practical tutorial will walk you through configuring Noesis step by step. After completing it, you'll be able to see - "See how your system REALLY works" 🙂

What you should expect:

Your system visualization in the form of P3 model elements
Entry points contained in these modules - often corresponding to REST endpoints or business logic entry points
Service visualization showing which services are used by each entry point and how they're interconnected

Understanding the P3 Model

Understanding the P3 model is crucial for effective Noesis configuration. The P3 model defines three key elements: domain modules, domain objects, and domain behaviors that form the foundation of how Noesis analyzes and visualizes your system architecture.

Prerequisites

Before you begin, make sure you have:

Docker installed on your system
Docker access token obtained from Noesis team
Noesis license file (.jwt) obtained from Noesis team
A .NET 5+ repository to analyze
Basic knowledge of Docker and .NET project structure

Step 1: Prepare Directory Structure

We recommend using the following directory structure:

your-workspace/
├── noesis-workspace/
│   ├── data/                 # Noesis data (cache, results) - empty folder
│   └── license.jwt           # License file obtained from Noesis team
├── git-repos/                # Root directory with .NET git repositories to analyze
├── git-repos/my-system-repo/ # Reposiotry which you want to analyze
└── git-repos/noesis-config/  # Noesis DSL configuration project

TIP for organizing your repos

On a local machine, the easiest way to start is to create noesis-workspace next to your directory with the git repositories (obviously your git repository can be named differently than git-repos). However, if you want to share only selected repos with Noesis, you may as well create a separate directory and put the scanned repos there. It is also a good practice if you want to scan different versions of git-repos than the ones which you currently modify.

noesis-config is a new .NET library with Noesis DSL which you will create as a part of this tutorial. We recommend that this config eventually becomes one of your git repositories, so it's a good idea to put it inside git-repos as well.

Please note that for the first quick check you will need only:

your-workspace/
├── noesis-workspace/
│   ├── data/           # Noesis data (cache, results) - empty folder
│   └── license.jwt     # License file obtained from Noesis team

Step 2: Docker Authentication

Start Docker or make sure that it's up and running. You need to authenticate with the Noesis Docker registry using noesis-packages as a username:

docker login ghcr.io -u noesis-packages
# Enter your access token when prompted (obtained from Noesis team)

Step 3: First Noesis Run

Start by running the Noesis container without configuration to check if you can access the UI.

Make sure you are in the noesis-workspace directory:

cd noesis-workspace

Run the basic docker command:

docker run \
  -v ./data:/data \
  -v ./license.jwt:/license.jwt:ro \
  -p 8088:8080 \
  --rm \
  ghcr.io/noesisvision/vision:latest

Open your browser and navigate to http://localhost:8088. You should see the Noesis interface with example repositories.

🎉 First Success! Noesis is running and you can browse example projects.

Step 4: Basic Configuration - Domain Modules

Now we'll configure Noesis to analyze your repository and make the full use of directory structure presented in Step 1.

Let's start by creating a basic configuration that will detect domain modules according to namespace hierarchy. In order to achieve that, you are going to configure two new volumes in the container:

externalSources - it is a root directory of all the code repositories you want to scan
externalConfig - is a path to a new .NET project where you will specify your scanning rules and architecture conventions, using Noesis DSL

4.1: Prepare code for analysis in `git-repos`

Clone the .NET repo for analysis in the git-repos directory or make sure that it is already available there. In the tutorial we assume that your repo name is my-system-repo

cd git-repos/my-system-repo
git status

Make sure that the project in the repo can be successfully compiled. It should be possible to make dotnet restore and dotnet build on this project. However you don't need to run these commands right now - just make sure they won't fail as Noesis scanning engine needs to run them independently on a repository copy to perform the successful scan.

If you are not sure and want to be on the safe side run:

dotnet build

4.2: Create Configuration Project

Now we will create a new configuration project noesis-config which we recommend to keep in git-repos as well. Make sure you are in the git-repos directory

cd git-repos

Create a .NET library project named noesis-config:

# Create configuration project next to noesis-workspace
dotnet new classlib -n noesis-config
cd noesis-config

Now add .NET NuGet packages to the project and test that it compiles

dotnet add package NoesisVision.Configuration
dotnet build

4.3: Add Basic Module Configuration

Open the project in your IDE and create the ArchitectureConventions.cs file.

Remember to change ../my-system-repo to the actual path to your project.

using NoesisVision.Parser.Configuration;

namespace NoesisConfig
{
    public static class ArchitectureConventions
    {
        [FullAnalysisConfigAttribute]
        public static FullAnalysisConfig Create() => FullAnalysisConfigBuilder
            .System("My System")  // System name in documentation
            .Repositories(repositories => repositories
                .UseLocal("Main", "my-system-repo"))  // Path to your repository relative to externalSources dir
            .Conventions(conventions => conventions
                .ForDomainModules(convention => convention
                    .UseNamespaceHierarchy()))  // Creates modules from namespaces
            .Build();
    }
}

Important Note about Repositories

The Repositories node in Noesis DSL refers to version control repositories (code repositories, Git repositories), not the Repository design pattern. This section configures where Noesis should look for your source code to analyze.

Play with the DSL if you want. You should be able additional versions of methods e.g. allowing to specify repository branch (which might be useful if your primary branch is not main). You may add multiple configuration files - they will be recognized by Noesis as separate systems to scan.

Check if the project correctly compiles - otherwise Noesis won't be able to work with it.

dotnet build

4.4: Run with Module Configuration

Navigate back to noesis-workspace

cd noesis-workspace

Run the docker command with the 2 new volumes added.

Please note that for externalSources we use root git-repos directory, not the full link to your repo!

docker run \
  -v $(pwd)/../git-repos/noesis-config:/externalConfig:ro \
  -v $(pwd)/../git-repos:/externalSources:ro \
  -v ./data:/data \
  -v ./license.jwt:/license.jwt:ro \
  -p 8088:8080 \
  --rm \
  ghcr.io/noesisvision/vision:latest

4.5: Verify Modules

Open http://localhost:8088

Click "Analyze" and run a scan of your repository - the scanning may take a while - check logs for details and potential errors. Correct logs should look similar to this ones:

[10:04:12 INF] Source code setup for system DDD Starter Dotnet started
[10:04:12 INF] Source code setup for system DDD Starter Dotnet finished in 0.02s.
[10:04:12 INF] Source code checkout for system DDD Starter Dotnet started
[10:04:12 INF] Source code checkout for system DDD Starter Dotnet finished in 0.25s.
[10:04:12 INF] Full analysis started for system DDD Starter Dotnet.
[10:04:12 INF] Building intermediate model started
[10:04:52 INF] Loading projects for repository Main started.
[10:05:08 INF] Loading projects for repository Main finished in 16.64s.
[10:05:15 INF] Building intermediate model finished in 62.35s.
[10:05:15 INF] Building P3 model started
[10:05:15 INF] Building P3 model finished in 0.34s.
[10:05:15 INF] Inferencing started
[10:05:15 INF] Inferencing finished in 0.06s.
[10:05:15 INF] Full analysis for system DDD Starter Dotnet finished in 62.92s.

warning

You may see some compilation errors in the logs - DO NOT PANIC - probably these are compilation WARNINGS which are only displayed as errors by Roslyn. Please wait patientily for the final message about success or failure of project loading.

Go back to the main page and click "Basic mode" to view the scan results. Choose your result.

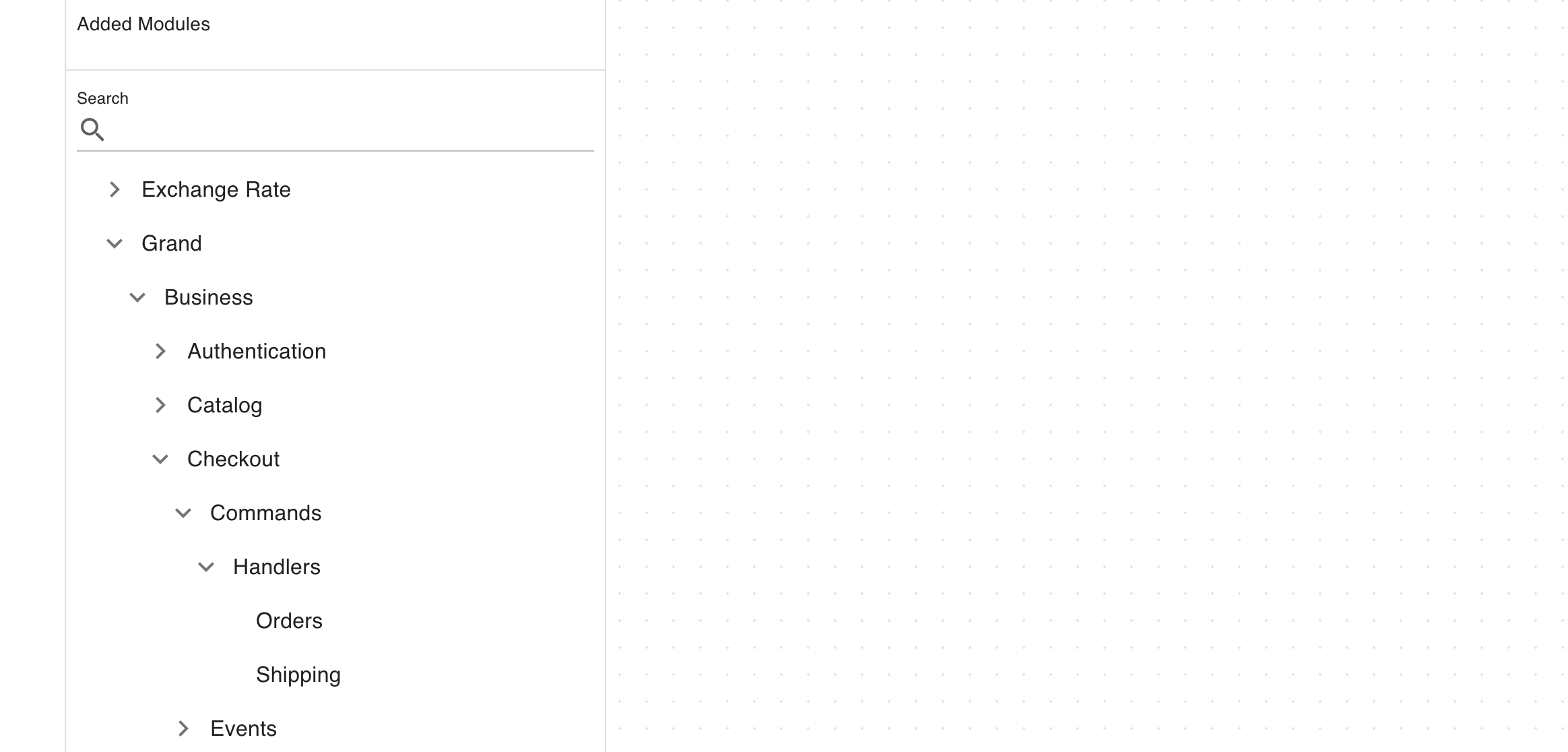

Click Modules view - you should see modules created from your project's namespaces in the tree on the left, after you expand it. Here's how it may look:

🎉 Second Success! Noesis recognized your system structure and created domain modules.

Step 5: Entry Points Configuration

Now we'll add entry points configuration - domain behaviors that represent entry points to your system's business logic. These often correspond to REST API endpoints or command handling methods.

info

From now on, it might be worth knowing that the architecture conventions examples presented in the code-snippets below were created according to the architecture of an opensource project Grandnode2. This information might help you compare what is the exact application code corresponding to the presented usages of Noesis DSL. In addition you can find a full configuration for this projects in our examples repository on Github

5.1: Add Entry Points Configuration

Update ArchitectureConventions.cs, adding entry points configuration. The configuration depends on your project patterns, but if you use typical CommandHandlers with method Handle it may look like that:

using NoesisVision.Parser.CodeParsing.Configuration;
using NoesisVision.Parser.Configuration;
using NoesisVision.Tags;

namespace NoesisConfig
{
    public static class Grandnode2Config
    {
        [FullAnalysisConfigAttribute]
        public static FullAnalysisConfig Create() => FullAnalysisConfigBuilder
            .System("My System")  // System name in documentation
            .Repositories(repositories => repositories
                .UseLocal("Main", "my-system-repo"))  // Path to your repository relative to externalSources dir
            .Conventions(conventions => conventions
                .ForDomainModules(convention => convention
                    .UseNamespaceHierarchy())
                // Add Entry Points configuration
                .ForDomainBehaviors(NoesisTags.Domain.EntryPoint, convention => convention
                    .UseMethods()  // Analyze individual methods
                    .FromTypes(types => types
                        .OfKind(TypeKind.Class)  // Only classes
                    .WithNameEndingWith("CommandHandler"))  // Handler naming convention
                .WithName("Handle")  // Method must be named "Handle"
                .SetName(method =>
                    $"{method.ContainingType.Name.Replace("CommandHandler", string.Empty)}")  // Create readable behavior name
            )) // Creates modules from namespaces
            .Build();
    }
}

For more options on how to configure entry point detection please refer to the Conventions Documentation. You may also check available

5.2: Run with Entry Points Configuration

At the moment, you need to restart container after every configuration change (we are plan to improve it in the near future).

docker run \
  -v $(pwd)/../git-repos/noesis-config:/externalConfig:ro \
  -v $(pwd)/../git-repos:/externalSources:ro \
  -v ./data:/data \
  -v ./license.jwt:/license.jwt:ro \
  -p 8088:8080 \
  --rm \
  ghcr.io/noesisvision/vision:latest

5.3: Verify Entry Points

Open http://localhost:8088
Click "Analyze" and run a scan of your repository - the scanning may take a while - check logs for details and potential errors.
Go back to the main page and click "Basic mode" to view the scan results. Choose your result.

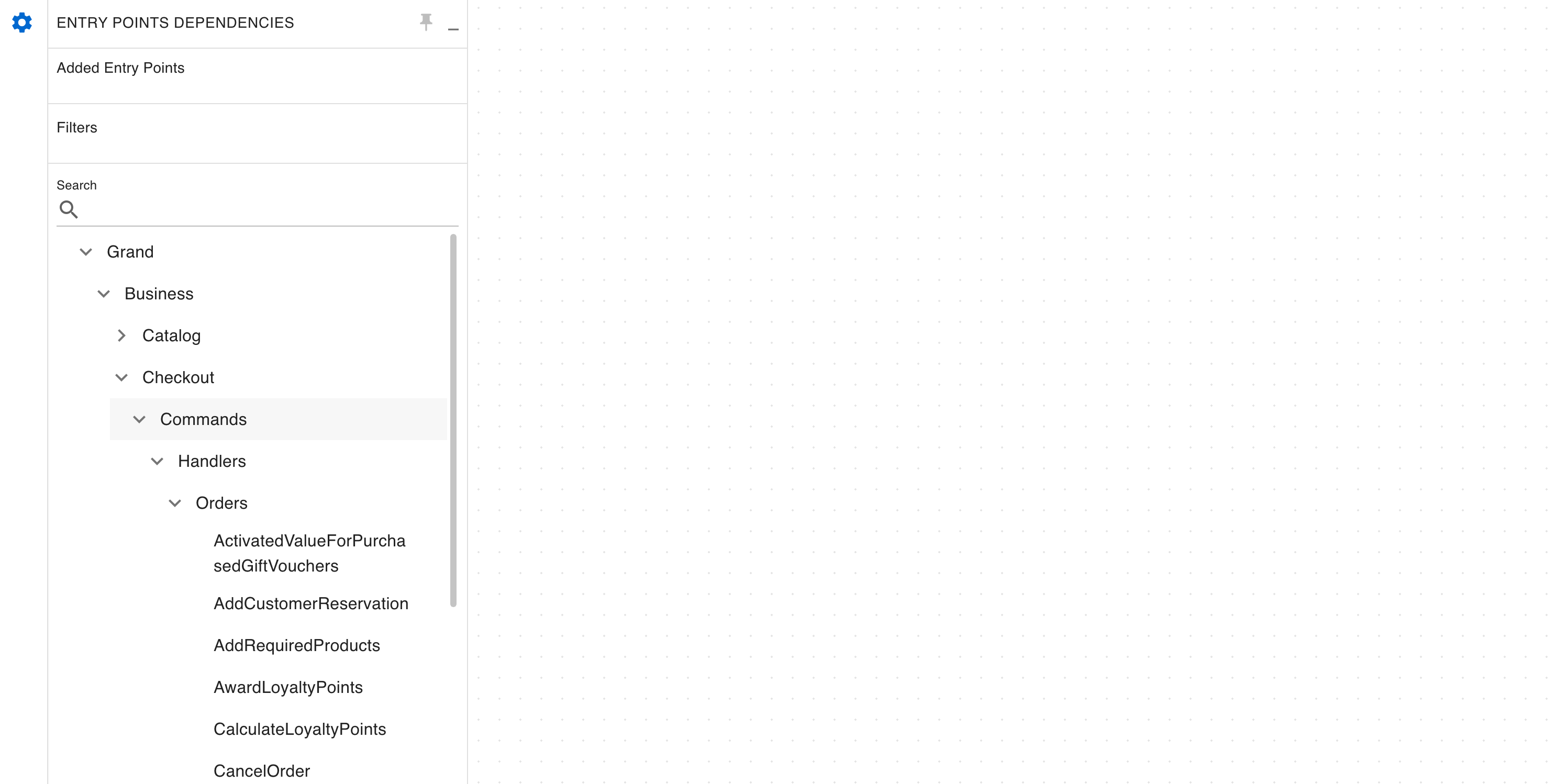

Click Entry Points view - you should see entry points organized in modules in the tree on the left, after you expand it.

Here's how it may look: Entry points view

🎉 Third Success! Noesis recognized entry points to your system and shows them in appropriate modules.

Step 6: Services Configuration

Finally, we'll add services configuration - domain objects that represent business components used by entry points.

6.1: Add Services Configuration

Update ArchitectureConventions.cs, adding services configuration:

using NoesisVision.Parser.CodeParsing.Configuration;
using NoesisVision.Parser.Configuration;
using NoesisVision.Tags;

namespace NoesisConfig
{
    public static class Grandnode2Config
    {
         [FullAnalysisConfigAttribute]
        public static FullAnalysisConfig Create() => FullAnalysisConfigBuilder
            .System("My System")  // System name in documentation
            .Repositories(repositories => repositories
                .UseLocal("Main", "my-system-repo"))  // Path to your repository relative to externalSources dir
            .Conventions(conventions => conventions
                .ForDomainModules(convention => convention
                    .UseNamespaceHierarchy())
                     // Add Entry Points configuration
                .ForDomainBehaviors(NoesisTags.Domain.EntryPoint, convention => convention
                    .UseMethods()  // Analyze individual methods
                    .FromTypes(types => types
                        .OfKind(TypeKind.Class)  // Only classes
                    .WithNameEndingWith("CommandHandler"))  // Handler naming convention
                    .WithName("Handle")  // Method must be named "Handle"
                    .SetName(method =>
                        $"{method.ContainingType.Name.Replace("CommandHandler", string.Empty)}"))
                // Add Services configuration
                .ForDomainObjects(NoesisTags.Domain.Service, convention => convention
                    .UseTypes()  // Analyze types
                    .WithNameEndingWith("Service")  // Interfaces ending with "Service"
                    .SetName(type => type.Name[1..])))  // Remove "I" prefix
            .Build();
    }
}

Important Note about Domain Objects

Domain Objects in Noesis DSL can be any objects from your code - they are not limited to Domain Driven Design concepts. You can identify and tag various types of objects such as services, entities, repositories, commands, events, queries, controllers, or any other architectural components that are important in your system.

For more information about the generic P3 model and its elements, see the P3 Model Elements documentation.

6.2: Run with Full Configuration

Run the container with complete configuration:

docker run \
  -v $(pwd)/../git-repos/noesis-config:/externalConfig:ro \
  -v $(pwd)/../git-repos:/externalSources:ro \
  -v ./data:/data \
  -v ./license.jwt:/license.jwt:ro \
  -p 8088:8080 \
  --rm \
  ghcr.io/noesisvision/vision:latest

6.3: Verify Complete Visualization

Run the final scan

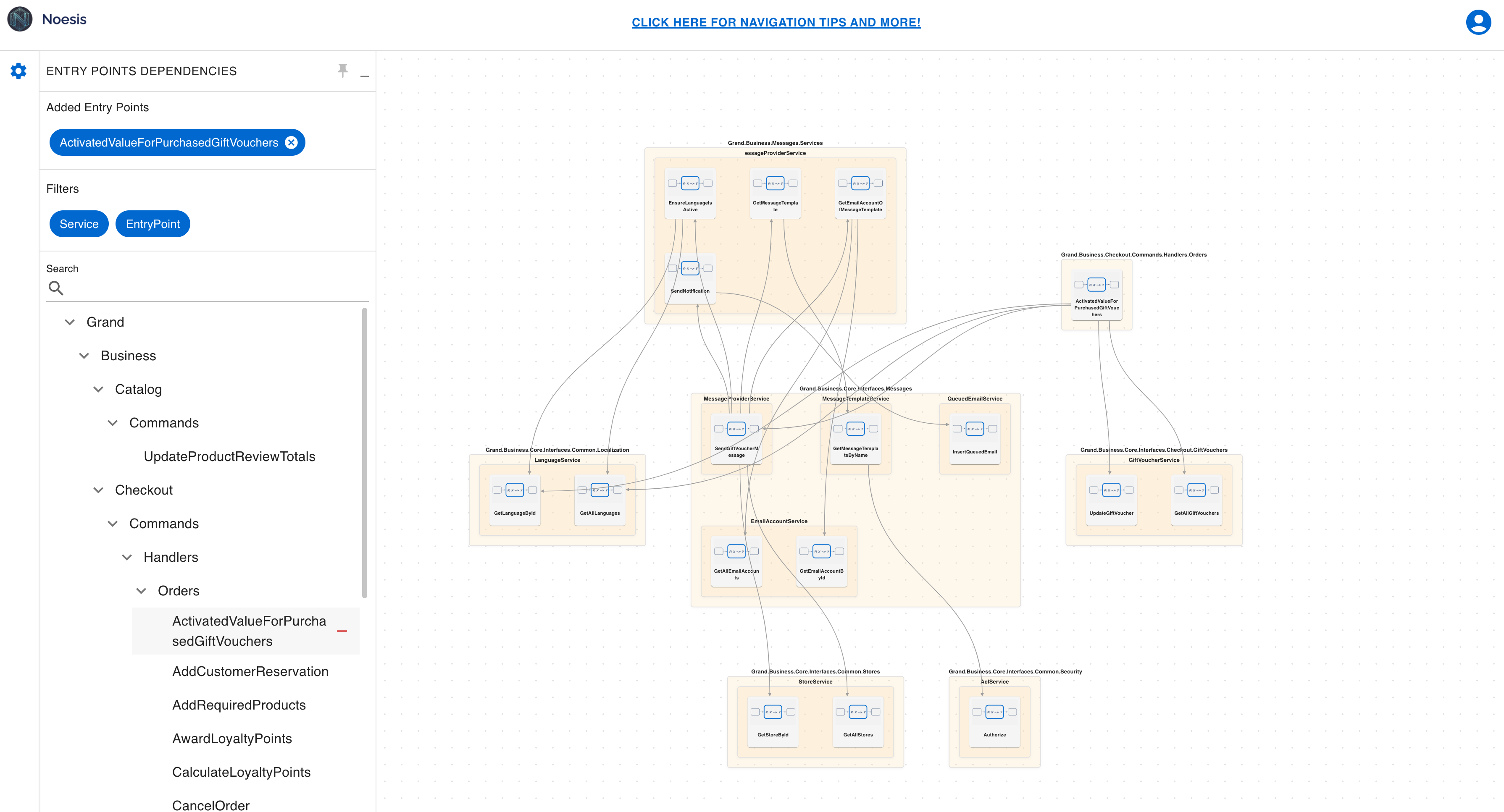

Go to the Entry Points section in the newest scan result and click a plus icon of the entry points - you should see services from your system used by this entry point.

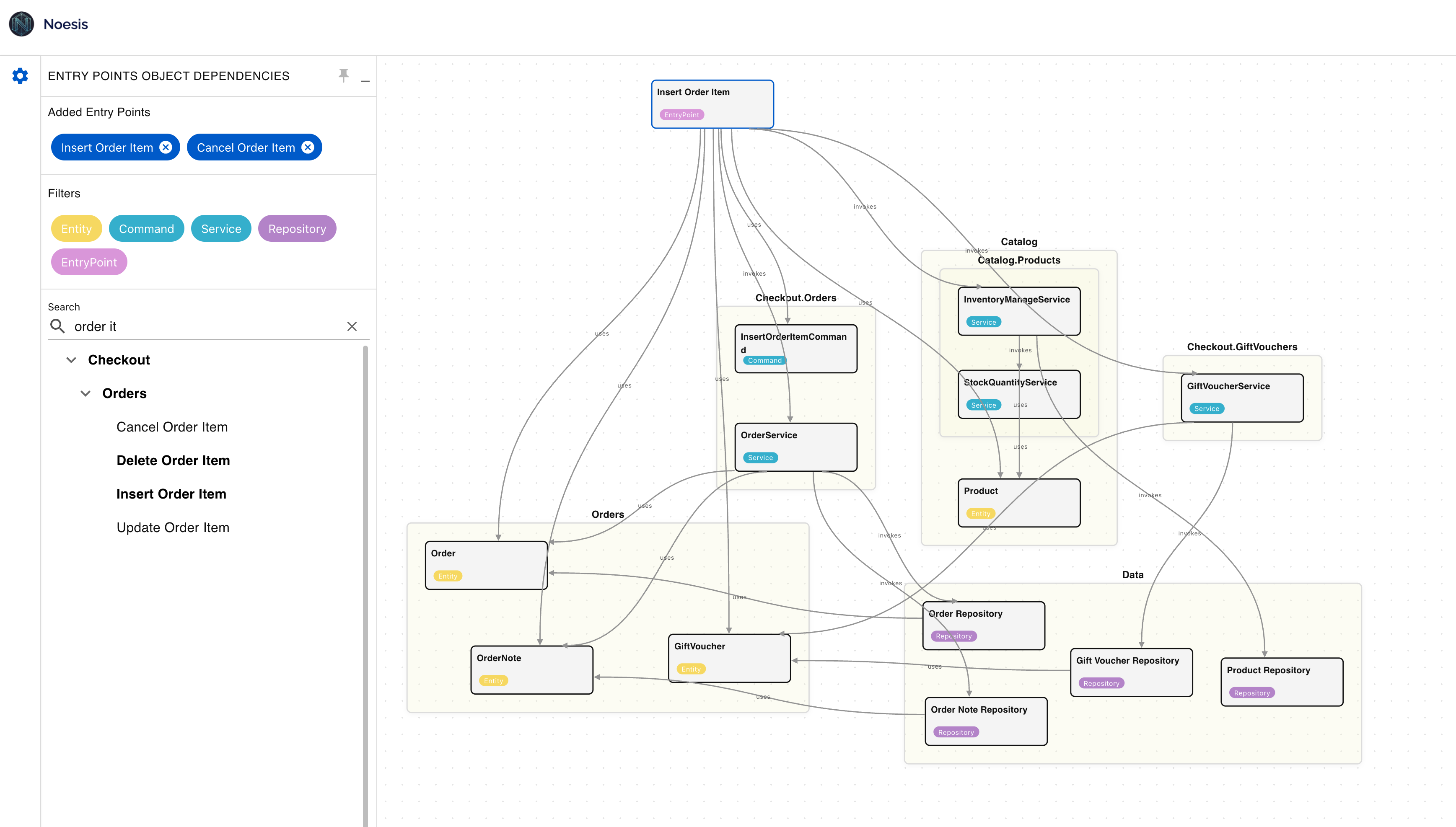

Add another entry point from the list which potentially shares some services with the first one. You should see what are the common services.

Services view

🎉 Great Success! You now have completed a first basic visualization of your system!

What You've Achieved

Congratulations! After completing this tutorial, you can see:

✅ Your system visualization - domain modules created from namespaces
✅ Entry points - business logic entry points (REST endpoints)
✅ Services - business components used by entry points
✅ Relationships - how entry points use services and how they're connected

Next Steps

Now that you have basic visualization, you can:

Configure advanced conventions - customize architectural rules to your needs, add entities, repositories, commands, queries and DDD patterns
Explore the interface - learn to use all Noesis UI features
Add AI integration - enable component description generation

Troubleshooting

Issue: Container won't start

Check if all volumes are properly mounted
Ensure the license file is accessible
Check container logs: docker logs <container_id>

Issue: Can't see your modules/entry points/services

Ensure naming conventions match your code
Verify the configuration project compiles correctly

Need Help?

Get instant help on our Discord server
Check the full installation guide
Review configuration documentation
Visit our GitHub repository with config examples

Prerequisites​

Step 1: Prepare Directory Structure​

Step 2: Docker Authentication​

Step 3: First Noesis Run​

Step 4: Basic Configuration - Domain Modules​

4.1: Prepare code for analysis in git-repos​

4.2: Create Configuration Project​

4.3: Add Basic Module Configuration​

4.4: Run with Module Configuration​

4.5: Verify Modules​

Step 5: Entry Points Configuration​

5.1: Add Entry Points Configuration​

5.2: Run with Entry Points Configuration​

5.3: Verify Entry Points​

Step 6: Services Configuration​

6.1: Add Services Configuration​

6.2: Run with Full Configuration​

6.3: Verify Complete Visualization​

What You've Achieved​

Next Steps​

Troubleshooting​

Issue: Container won't start​

Issue: Can't see your modules/entry points/services​

Need Help?​
